Introduction

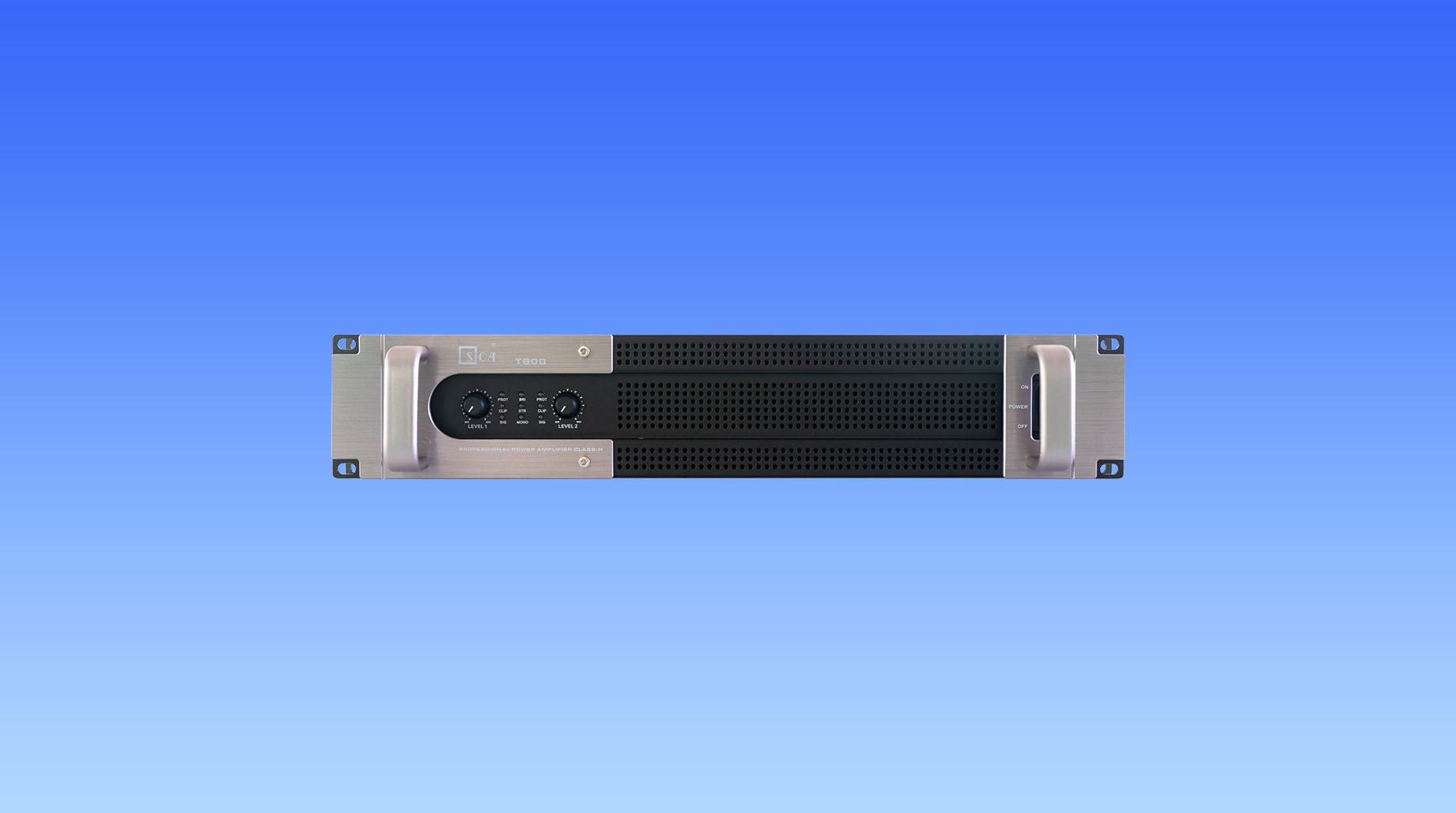

T Series Two-Channel Professional Power Amplifier
The T series two-channel professional power amplifier is powerful, stable, and reliable. It is meticulously designed to provide excellent performance even in harsh environmental conditions.
The T series amplifiers feature both binding post and Speakon output connections.
While maintaining excellent sound quality, it can also deliver 2 x 800W (8Ω) output power. The rugged casing prevents dents and breakage, and the dual-fan, high-volume heat dissipation system ensures stable use in a variety of harsh climatic environments. A sophisticated protection circuit ensures high stability. It also provides numerous protection circuits: soft start, short circuit protection, CPL current peak limiter, DC protection, AC protection, thermal cut-off protection, and high impedance protection all ensure stable drive capability. It can provide concert-quality performance for fixed installations or live sound reinforcement applications.
- It has an input sensitivity switch and an output mode switch.
- Five-segment signal level LED indicators.
- XLR balanced input, Speakon output connection.
- Features 7 types of system protection and a two-stage variable speed cooling system.
| Feature | Value |
|---|---|
| Stereo Output Power | |
| 8 ohms | 2 x 800W |
| 4 ohms | 2 x 1200W |
| Bridged Output Power | |
| 8 ohms (Bridged Mono) | 2400W |
| Frequency Response (±3dB, 8 ohms) | 20Hz - 20KHz |
| Total Harmonic Distortion | < 0.1% |
| Signal-to-Noise Ratio (A weighted, 20Hz-20KHz) | 100dB |
| Crosstalk | -70dB |
| Input Sensitivity | 1.0V or 1.4V (Rated Power 8 ohms) |
| Input Impedance | 20k ohms Balanced / 10k ohms Unbalanced |
| Input Connectors (Per Channel) | 3-pin XLR, Electronically Balanced |
| Output Connectors | 2 x Neutrik® NL4, Binding Posts |
| Damping Factor | 300 |
| Slew Rate | 20V/us |
| Operating Voltage | 220-240V~50-60Hz |
| Dimensions | 483 x 88 x 410mm |
| Weight | 17.1Kg |
